Default Enclosure Build: Local's 12" P3's

Alright this enclosure will be for 94delsol (not from the audio forums) for his pair of 12's

Specs come to:

-1.875 cubes net per sub
-38hz tuning
-33.6875 sq inches of port area per sub

A look at the design:



And I didnt have a whole lot of time to be at the shop today so only got the majority of the pieces cut and the back panel mounted..





Rabbeted the edges of the side panels for easier/better carpeting later..

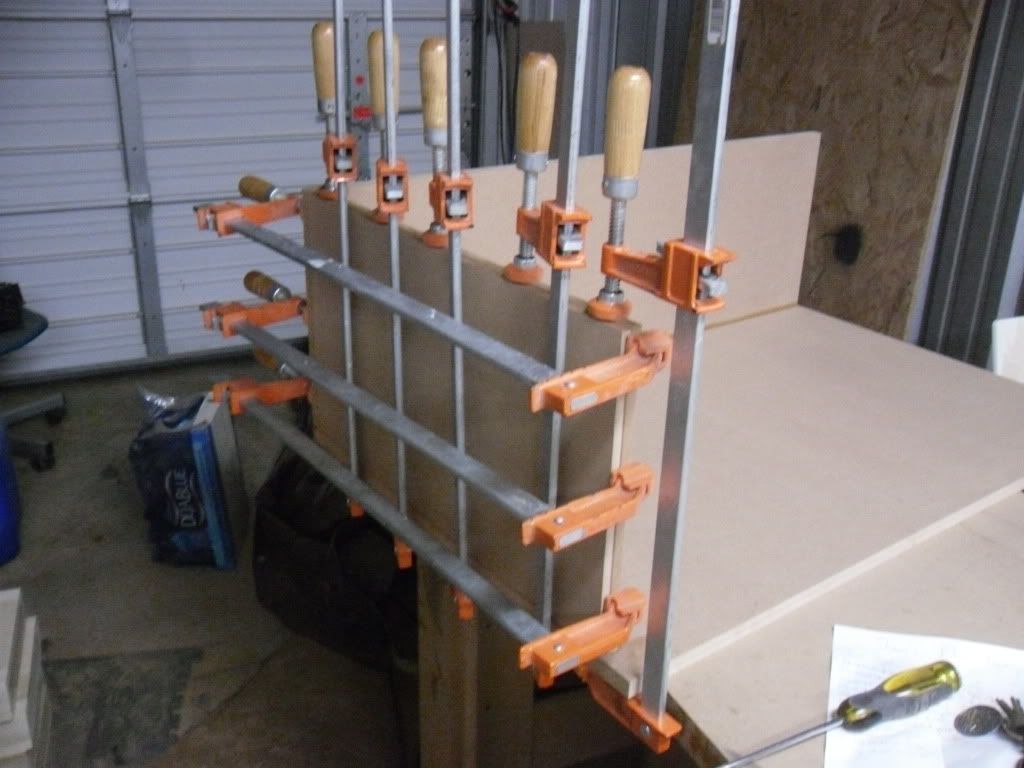

Side panel on (just clamped it down and will add screws tomorrow, I prefer doing this with those rabbeted edges)

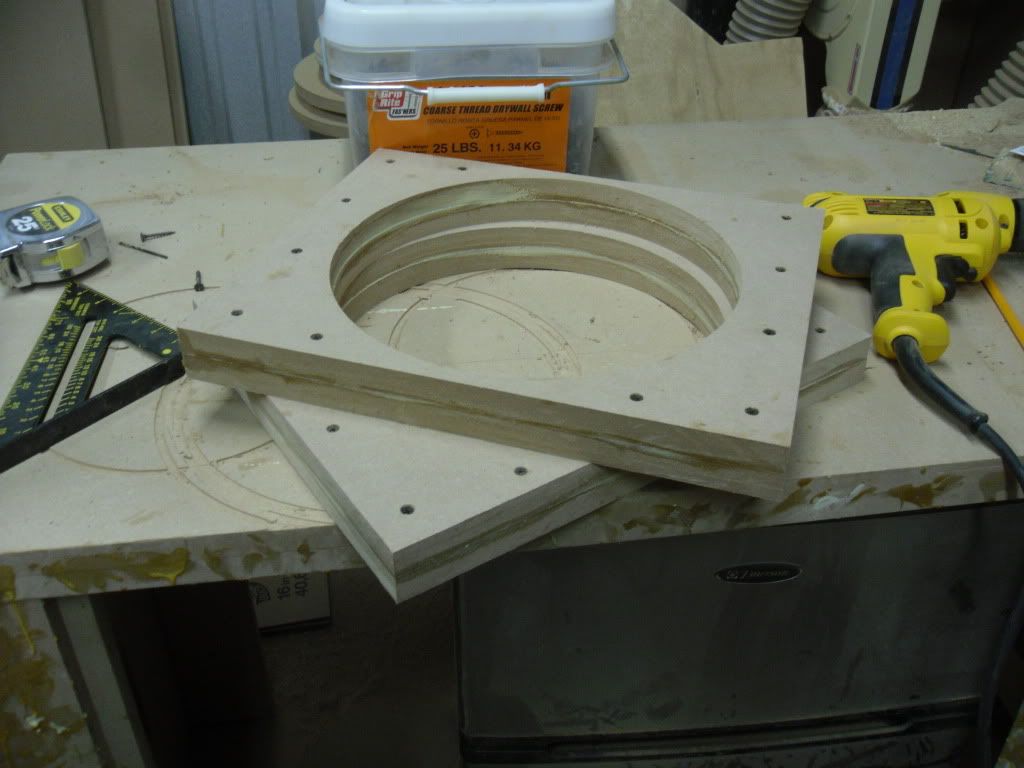

Cutouts..


Attaching the first port pieces to the sides of the front baffles..



(In the last few pics I realized I forgot one of the screws holding the panels together)
