so here is my finnal idea on how to work my 4th order

all outside walls are 4" thick, inside baffle will be 1.5", maybe 2.25" if i need it.

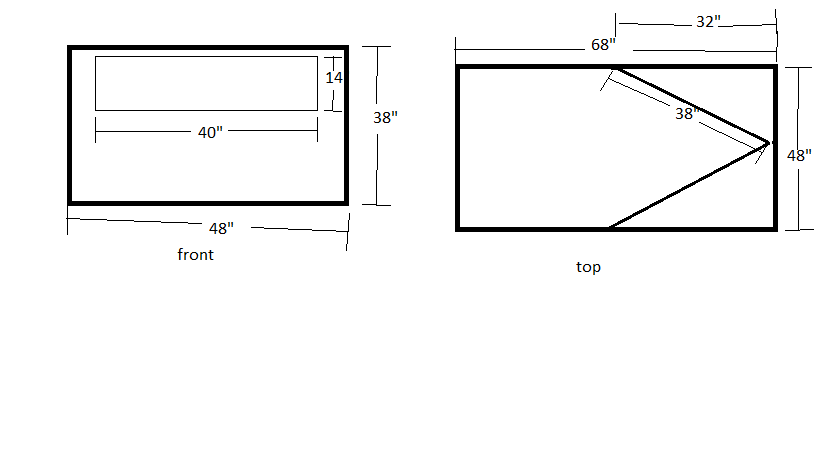

all measurements on the pic are from external
i need 12cf on the sealed side, and with the subs on the ported side im looking right about 29cf before sub displacement
port measures 14" tall 40" wide and will be 8" long will be external and will be 3/4" board, and should be 8" long for 45hz tuning
the v will be 1" off the back wall to get me to the 12cf with each side of the v being 38" and meeting in the center.
going in the bed of a 96 ram 1500 standard cab short box
cabin is right about 60" wide, 45" tall and 40" to the windshield from the port
will be for 12 obsidian 12d4's on a rd D9 @ .66ohm for now looking to strap 2 @ 1.5ohm in the future
if any more info is needed just let me know, im just looking for some feedback before i put the center baffle in
here are obsidian's tsp's
12" D2:
Re: 4.0 Ohm
Fs: 33 Hz
Qms: 5.21
Qes: 0.56
Qts: 0.51
Vas: 34.4
Le: 2.21 mH
BL: 19.1
SPL: 85.4 dB
Sd: 490 cm^2
Mms: 243.1 g
Xmax: 18mm
Xmech: 36mm

all i could find was the d2 if i need the d4 tsp's let me know and i will email nick or jacob

Recommended enclosure sizes for the 12" are as follows:
1.0 to 1.75 ft^3 sealed.
1.75 to 2 ft^3 ported tuned at 30 to 35 Hz.

Cutout: 11.10"
Mounting depth: 6.75"
Mounting flange to top of surround: 1.25"
OD: 12.5"
Displacement: 0.16 ft^3
__________________
07 mazdaspeed3
rd d9 @ .5ohm
2 sa Zv1's 5.8cf tuned to 48 or 32 with port plugs
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 07-10-2011, 04:24 AM
Mobile Enclosures's Avatar
CACO Member

Activity Longevity
0/20 15/20
Today Posts
0/11 ssssss220
Location: New London, Connecticut
Thanks: 4
Thanked 9 Times in 9 Posts
iTrader: (0)
Feedback Score: 0 reviews
Default

Quote:
Originally Posted by tymoto21 View Post
so here is my finnal idea on how to work my 4th order

all outside walls are 4" thick, inside baffle will be 1.5", maybe 2.25" if i need it.
all measurements on the pic are from external
i need 12cf on the sealed side, and with the subs on the ported side im looking right about 29cf before sub displacement
port measures 14" tall 40" wide and will be 8" long will be external and will be 3/4" board, and should be 8" long for 45hz tuning
the v will be 1" off the back wall to get me to the 12cf with each side of the v being 38" and meeting in the center.
going in the bed of a 96 ram 1500 standard cab short box
cabin is right about 60" wide, 45" tall and 40" to the windshield from the port
will be for 12 obsidian 12d4's on a rd D9 @ .66ohm for now looking to strap 2 @ 1.5ohm in the future
if any more info is needed just let me know, im just looking for some feedback before i put the center baffle in
here are obsidian's tsp's
12" D2:
Re: 4.0 Ohm
Fs: 33 Hz
Qms: 5.21
Qes: 0.56
Qts: 0.51
Vas: 34.4
Le: 2.21 mH
BL: 19.1
SPL: 85.4 dB
Sd: 490 cm^2
Mms: 243.1 g
Xmax: 18mm
Xmech: 36mm

all i could find was the d2 if i need the d4 tsp's let me know and i will email nick or jacob
Recommended enclosure sizes for the 12" are as follows:
1.0 to 1.75 ft^3 sealed.
1.75 to 2 ft^3 ported tuned at 30 to 35 Hz.

Cutout: 11.10"
Mounting depth: 6.75"
Mounting flange to top of surround: 1.25"
OD: 12.5"
Displacement: 0.16 ft^3
Awesome man. Ill take a look at it today and let you know what I figure out.
__________________

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
"Looks do not determine if the box will perform well, but a well performing box does make it look good"
-Jason Evans
Reply With Quote Quick reply to this message
  #3
Old 07-10-2011, 09:24 AM
HACKMUNCH's Avatar
Elite Member

Activity Longevity
0/20 16/20
Today Posts
0/11 sssss3892
Location: OHIO
Thanks: 134
Thanked 511 Times in 364 Posts
iTrader: (12)
Feedback Score: 12 reviews
Default

with a qts of .51 they are very good canidates for 4th order. your ratio is a little peaky, id suggest more sealed chamber to try and get to 2:1 ratio. try and stick with 20" per cft port. with a horn that long that sumbtch gonna play monster lows.
__________________
TEAM TSA 2013
FACTORY BACKED
AMERICAN BASS- AMERICANBASSUSA.COM
XS POWER - 4XSPOWER.COM
PSI - PSICARAUDIO.COM

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message

  #4
Old 07-10-2011, 09:30 AM
mega fatty

Activity Longevity
0/20 20/20
Today Posts
0/11 sssss6008
Location: milwaukee, wi
Age: 30
Thanks: 261
Thanked 326 Times in 303 Posts
iTrader: (15)
Feedback Score: 15 reviews
Default

the entire idea is to murder da lows
it is not very far from a 2:1, 12cf about 26cf ported, the only concern i have is the port, with it being so big, just to get the 45hz (now more like 40hz tuning from 11.5" port) idk if it will have enough control over the subs, and idk how the top subs are going to like playing right into the port.
__________________
07 mazdaspeed3
rd d9 @ .5ohm
2 sa Zv1's 5.8cf tuned to 48 or 32 with port plugs
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
  #5
Old 07-10-2011, 09:46 AM
HACKMUNCH's Avatar
Elite Member

Activity Longevity
0/20 16/20
Today Posts
0/11 sssss3892
Location: OHIO
Thanks: 134
Thanked 511 Times in 364 Posts
iTrader: (12)
Feedback Score: 12 reviews
Default

ok ya ur close on the 2:1. dont worry about port placement, i like symetrical ports so all subs are loaded equal but should not be a big concern since your horn is so long. the cone control for the drivers comes more from correct port area and ur real close to 20" so you should be good. here is a vid from an old school friend of mine. his is similar to what ur doing. 16-12" 4th order. he is more near the 1:1.75 ratio. this thing hammers the lows like mad. YouTube - ‪John "Mother F'n" Hone! American Bass!‬‏
__________________
TEAM TSA 2013
FACTORY BACKED
AMERICAN BASS- AMERICANBASSUSA.COM
XS POWER - 4XSPOWER.COM
PSI - PSICARAUDIO.COM

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
  #6
Old 07-10-2011, 10:10 AM
poundstone's Avatar
CACO Supporter

Activity Longevity
0/20 17/20
Today Posts
0/11 sssss1635
Location: assumption, il
Age: 37
Thanks: 4
Thanked 27 Times in 20 Posts
iTrader: (10)
Feedback Score: 10 reviews
Default

lol yeah johns truck is brutal!!! nothin like feelin 7hz!!!lmao
__________________
2011 and 2012 usaci streetbeat 2 world champ
2012 2nd iasca advnw1 and lightweight bassboxing
2013 usaci mod 1001-2k world champ
2013 second meca mod 5
2014 mwspl adv 2 world champ
2014 meca mod 4 world champ
usaci streetbeat 2 world record holder b and k
usaci mod 1001-2k legal world record holder
mwspl adv 2 world record holder
first 160 ever on fusing at headrest in meca
Reply With Quote Quick reply to this message
  #7
Old 07-10-2011, 10:31 AM
ltr450racer690's Avatar
Elite Member

Activity Longevity
0/20 18/20
Today Posts
0/11 sssss3414
Location: west lafayette
Thanks: 160
Thanked 142 Times in 110 Posts
iTrader: (19)
Feedback Score: 19 reviews
Default

Quote:
Originally Posted by HACKMUNCH View Post
ok ya ur close on the 2:1. dont worry about port placement, i like symetrical ports so all subs are loaded equal but should not be a big concern since your horn is so long. the cone control for the drivers comes more from correct port area and ur real close to 20" so you should be good. here is a vid from an old school friend of mine. his is similar to what ur doing. 16-12" 4th order. he is more near the 1:1.75 ratio. this thing hammers the lows like mad. YouTube - ‪John "Mother F'n" Hone! American Bass!‬‏

but he is also tuned into the 30hz range with a 4th order. so it should play the lows well. same with hanks truck. you only get so much port with taking that back window out
__________________
AUDIOTECHIX DEALER
DLP CUSTOMS SALES REP


"Like all of hank's setups, he'll spend tons of time working on it, use it for 13 seconds, and then start all over again."- Tommy K
Reply With Quote Quick reply to this message
  #8
Old 07-10-2011, 10:48 AM
mega fatty

Activity Longevity
0/20 20/20
Today Posts
0/11 sssss6008
Location: milwaukee, wi
Age: 30
Thanks: 261
Thanked 326 Times in 303 Posts
iTrader: (15)
Feedback Score: 15 reviews
Default

well 485sq" is alot of port i would think, and it should be tuned right at 45hz with 11" port, and be 12cf sealed, 23.09cf ported at 45hz,
__________________
07 mazdaspeed3
rd d9 @ .5ohm
2 sa Zv1's 5.8cf tuned to 48 or 32 with port plugs
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
  #9
Old 07-10-2011, 10:54 AM
ltr450racer690's Avatar
Elite Member

Activity Longevity
0/20 18/20
Today Posts
0/11 sssss3414
Location: west lafayette
Thanks: 160
Thanked 142 Times in 110 Posts
iTrader: (19)
Feedback Score: 19 reviews
Default

can play with the tuning to your liking. personally i start were you are now and just play with it
__________________
AUDIOTECHIX DEALER
DLP CUSTOMS SALES REP


"Like all of hank's setups, he'll spend tons of time working on it, use it for 13 seconds, and then start all over again."- Tommy K
Reply With Quote Quick reply to this message
  #10
Old 07-10-2011, 11:25 AM
HACKMUNCH's Avatar
Elite Member

Activity Longevity
0/20 16/20
Today Posts
0/11 sssss3892
Location: OHIO
Thanks: 134
Thanked 511 Times in 364 Posts
iTrader: (12)
Feedback Score: 12 reviews
Default

yea start with 45hz and work down.
__________________
TEAM TSA 2013
FACTORY BACKED
AMERICAN BASS- AMERICANBASSUSA.COM
XS POWER - 4XSPOWER.COM
PSI - PSICARAUDIO.COM

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
