Default AQ 4 Inch Coil Test Results W/Pics

So I had the chance to do a head to head test between a brand new 18 HDC3 with the 3 inch coil and 18 HDC4 with the 4 inch coil. Both subs were broke in for about a week on music and tones. The box used was 5 cubes with a 12 inch aeroport. Sub up and port back. Car was a 1989 Civic Hatchback with full interior. Mic in legal position on the dash. These are rated to 10,000 on burps so we havent even touched them yet.

1st number is score, second number is clamped wattage.

18 - 3 Inch Coil Results
Peak Frequency - 56 HZ

143.3/385
144.5/489
145.4/639
146.5/844
147.4/1130
147.8/1187
148.3/1571
148.7/1716
149.3/2134
150.1/2956

18 - 4 Inch Coil Results
Peak Frequency - 57 HZ

143.8/346
144.5/405
145.6/522
146.6/685
147/804
147.4/832
148.3/1046
149.4/1478
150.7/1925
152.7/2915
153.1/3345

No results that I can publish on the 15 Inch version.

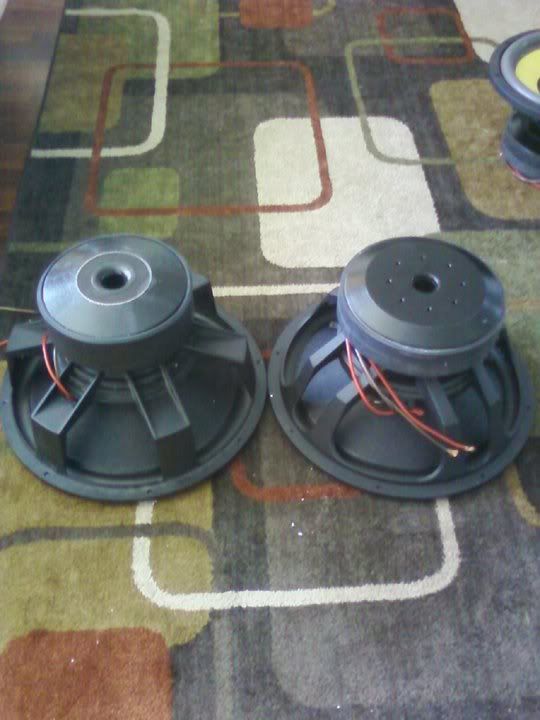

HDC3 and HDC4

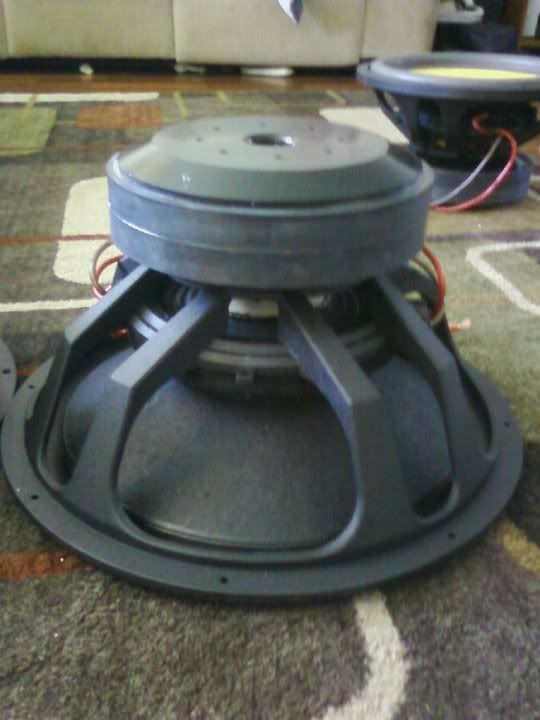

18 - 4 Inch Coil

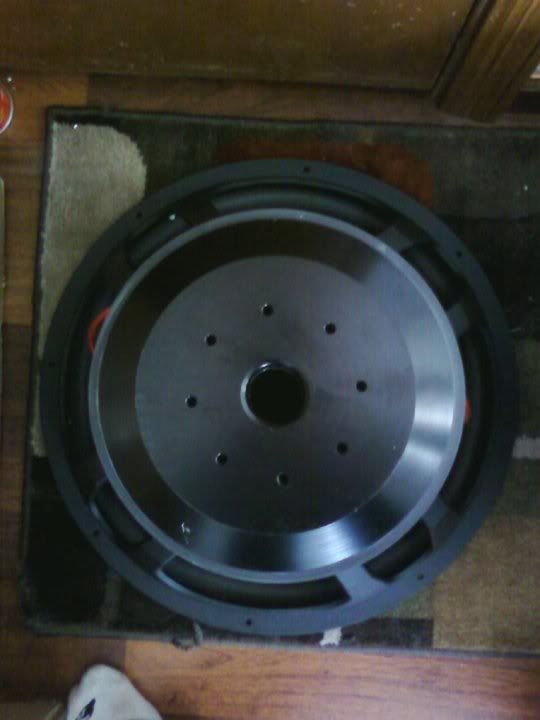

18 - 4 Inch Coil

15 - 4 Inch Coil

15 - 4 Inch Coil

Last edited by sruggles1976; 10-23-2010 at 01:49 PM.
Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 10-23-2010, 12:29 AM
korey_hofer's Avatar
Elite Member

Activity Longevity
0/20 20/20
Today Posts
0/11 ssss33855
Location: willy wonka's sex dungeon
Thanks: 10
Thanked 965 Times in 748 Posts
iTrader: (11)
Feedback Score: 11 reviews
Default

thank you Jasa for the cone?

looks pretty decent so far
__________________

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Quick reply to this message
  #3
Old 10-23-2010, 12:31 AM
k3n12ock's Avatar
Average Asian

Activity Longevity
0/20 19/20
Today Posts
0/11 sssss5963
Location: MD/NY
Thanks: 511
Thanked 431 Times in 300 Posts
iTrader: (49)
Feedback Score: 49 reviews
Default

F'ckin sexy!
__________________


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

Quick reply to this message

  #4
Old 10-23-2010, 12:32 AM
Dunbar91's Avatar
Elite Member

Activity Longevity
0/20 18/20
Today Posts
0/11 sssss6816
Location: WI
Thanks: 109
Thanked 259 Times in 202 Posts
iTrader: (51)
Feedback Score: 51 reviews
Default

imo i think the hdc3 is a lot better looking than than the 4" coil hdc3d
__________________
Sub- 18" Soundstream XXX/ti/dc lvl 6
Sub amp- Massive Audio p3000.1
Wire- Knukonceptz 1/0 & 4 gauge

Quote:
Good! That guy blows the sundown horn so hard he jerks off to an SA 8 at full xmax, gags himself with a nightshade pole vent and chokes himself with several feet of Z tinsel lead
Quick reply to this message
  #5
Old 10-23-2010, 12:34 AM
Pioneer~Saturn's Avatar
Idk what Im talking about

Activity Longevity
0/20 19/20
Today Posts
0/11 sssss8346
Location: OH
Age: 32
Thanks: 223
Thanked 193 Times in 161 Posts
iTrader: (6)
Feedback Score: 6 reviews
Default

Awesome
__________________
Louder. Lower.
Team Tupperware
<First and only dual-alternator 'real' Saturn (pre 2002) on the planet>
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

'Horn'-wall: 12.75 cubes net, ~25Hz tuning, 200 sq inches of port area (lowz..?)

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

"If it's been done before, you're doing it wrong"
Quick reply to this message
  #6
Old 10-23-2010, 12:34 AM
dat517boi's Avatar
Elite Member

Activity Longevity
0/20 18/20
Today Posts
0/11 ssssss834
Location: jackson, mi
Age: 31
Thanks: 102
Thanked 23 Times in 22 Posts
iTrader: (7)
Feedback Score: 7 reviews
Default

I think I just found my new 18's. Mhmmm
__________________
Vehicle: 2000 Jeep Grand Cherokee
Head Unit: JVC KD-R210
Sub: SA Nightshade V.1 18 x2
Sub Amp: Audioque AQ2200 x2
Battery: Optima Yellow Top, 9A31 x2
Alternator: 235 amp alt
Quote:
can we start the bidding war for the sister and mom?? and can we get T/S parameters on both?
Quote:
well unfortunately the t/s when they were new will be way diff now.... these drivers are used and beat on pretty hard in there day (not personal use but ive known all the owners and theres been alot)
Quick reply to this message
  #7
Old 10-23-2010, 12:35 AM
korey_hofer's Avatar
Elite Member

Activity Longevity
0/20 20/20
Today Posts
0/11 ssss33855
Location: willy wonka's sex dungeon
Thanks: 10
Thanked 965 Times in 748 Posts
iTrader: (11)
Feedback Score: 11 reviews
Default

fail double post
__________________

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Quick reply to this message
  #8
Old 10-23-2010, 12:35 AM
813thumper's Avatar
Elite Member

Activity Longevity
0/20 18/20
Today Posts
0/11 sssss1116
Location: Tampa, FL
Thanks: 85
Thanked 17 Times in 14 Posts
iTrader: (7)
Feedback Score: 7 reviews
Default

that motor makes it look like a 15
__________________
I LIKE BUILDING ENCLOSURES FOR CUSTOMERS


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Quick reply to this message
  #9
Old 10-23-2010, 12:36 AM
Car audio classifieds, stereo sales, subwoofer amps mids classified caraudio, BANNED!!

Activity Longevity
0/20 20/20
Today Posts
0/11 sssss1092
Age: 50
Thanks: 14
Thanked 40 Times in 28 Posts
iTrader: (18)
Feedback Score: 18 reviews
Default

Quote:
Originally Posted by 813thumper View Post
that motor makes it look like a 15
I thought the same thing!
Quick reply to this message
  #10
Old 10-23-2010, 12:37 AM
Car audio classifieds, stereo sales, subwoofer amps mids classified caraudio, BANNED!!

Activity Longevity
0/20 20/20
Today Posts
0/11 sssss1092
Age: 50
Thanks: 14
Thanked 40 Times in 28 Posts
iTrader: (18)
Feedback Score: 18 reviews
Default

Cost and production time!!!
