Exclamation Sketchup Tutorial

this is from JBLCAMRY on FLSPL

Ok, this is going to be a quick how to, using sketchup. This not a tuned box, it is just for demonstration sake.

Start off by measuring out your bottom piece of the box, and drawing it out.


Now that you have the bottom of the box measured and drawn, use the push/pull tool to pull it to the desired wood thickness. (Usually 3/4")


Now take your measuring tape, and click on the edge of each side and pull in 3/4" (or wood thickness)


Now draw lines with the guides still there, and then erase the guides


On this example I used a 3" wide vent, so take the tape measure again and measure 3" in from the inside of the walls, on the side and back. Then from those lines measure out another 3/4" with the measuring tape.


Then erase the piece in the front of the port and the guides.

Next is the 45 in the port, start out buy measuring from the corner to the interior edge and then measure 3" from the corner. (The little dot)


From that point, drag a square to the edge. And draw a line through the middle. Then from the edge of the square across till it turns a pink color (idk Im colorblind)


Now erase the square and the guides, so there is only this left.


Measure from the middle of that 45, out 3/4" like this

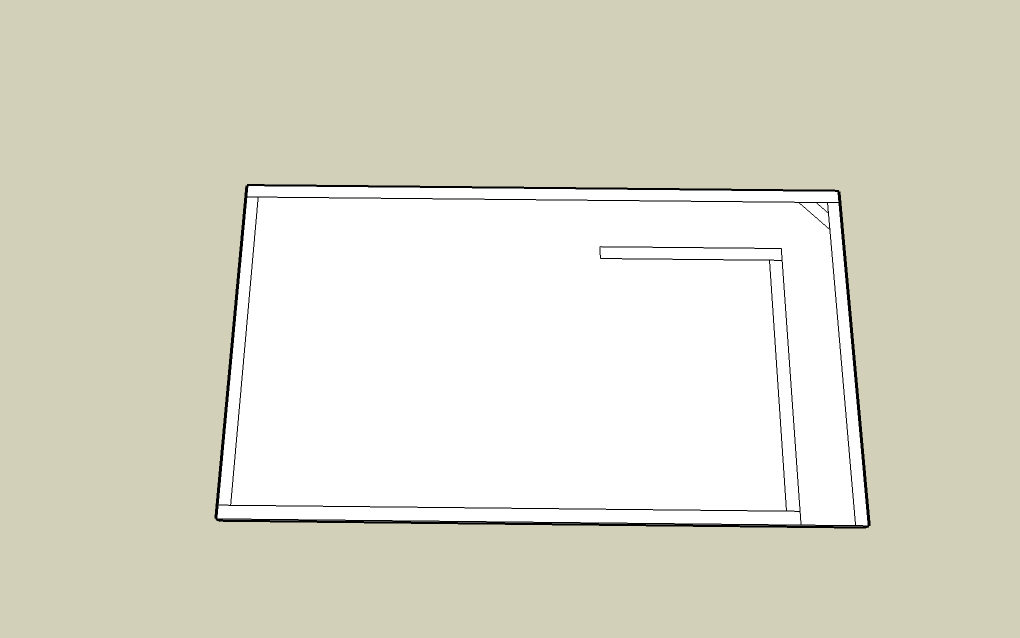

Then draw a line and erase the guide, leaving you with this.


Now you have your layout finished for the box.

now you start to pull up all of the pieces of the box,






note that all of the pieces are up, you need to draw the lines that separate them. like so...








now you have an almost complete box.


next is how i do the top. i draw a line 3/4" up on the corner, then i draw a line the depth of the box, then back down 3/4". leaving this........



now pull it accross.




now is time for the hole cutout, first you want to find out where you want to but it, use the guides to do this. for this box, i pulled from the edge 14". then drew and X using the guides.


now draw the circle (this one is 5 1/2" radius) so there is an 11" cutout.


now use you push pull tool and push in 3/4" and let go. you will be left with this...


now erase the guides and your done, you have a finished drawing using sketchup


hope this helps.
Reply With Quote Quick reply to this message
The Following User Says Thank You to caps For This Useful Post:
soFat! (09-06-2016)
Sponsored Links
Advertisement

  #2
Old 01-17-2009, 02:02 PM
Car audio classifieds, stereo sales, subwoofer amps mids classified caraudio, BANNED!!

Activity Longevity
0/20 20/20
Today Posts
0/11 sssss9745
Location: Midwest
Thanks: 0
Thanked 5 Times in 5 Posts
iTrader: (18)
Feedback Score: 18 reviews
Default

Very nice tutorial Caps!
__________________

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
-
To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.

To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 0 or greater. You currently have 0 posts.
Reply With Quote Quick reply to this message
  #3
Old 01-17-2009, 02:03 PM
SPY SPY is offline
Car audio classifieds, stereo sales, subwoofer amps mids classified caraudio, BANNED!!

Activity Longevity
0/20 20/20
Today Posts
0/11 ssss10192
Location: Upstate, NY
Thanks: 0
Thanked 26 Times in 23 Posts
iTrader: (93)
Feedback Score: 93 reviews
Default

That's nice but I think I posted one of these a while ago
